Optical vignetting is corrected using BaSiC, a retrospective method for estimating flat-field and correcting microscopy images . This library was developed by Quantitative Single Cell Dynamics group at Helmholtz Zentrum München Institute of Computational Biology. All tiles within a region and z-slice is combined into a single ImagePlus stack and processed to find an estimate flat-field image. The original stack is then divided by resulting flat-field to apply the correction.

Peng, T., Thorn, K., Schroeder, T., Wang, L., Theis, F. J., Marr, C., & Navab, N. (2017). A BaSiC tool for background and shading correction of optical microscopy images. Nature communications, 8, 14836.
GitHub Link
[1]
[2]
[3]
(Left) Ki67 before shading correction. (Right) After

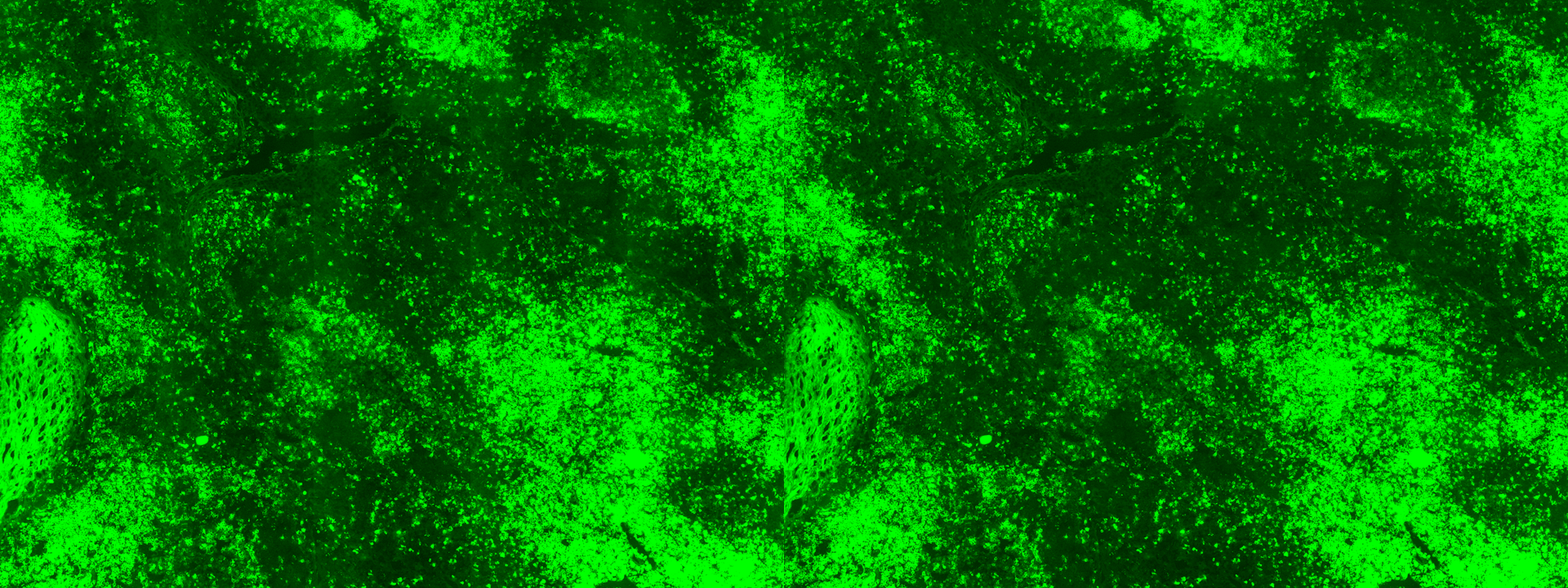

(Left) CD7 before shading correction. (Right) After
(Left) CD34 before shading correction. (Right) after
